ibalancing’s horizontal and vertical universal balancing machines are used to precisely balance a wide range of roll and disk shaped rotors. Their modular design makes them adaptable for many balancing tasks. Balancing correction with JZABM universal balancing machines is performed either manually or manually controlled..

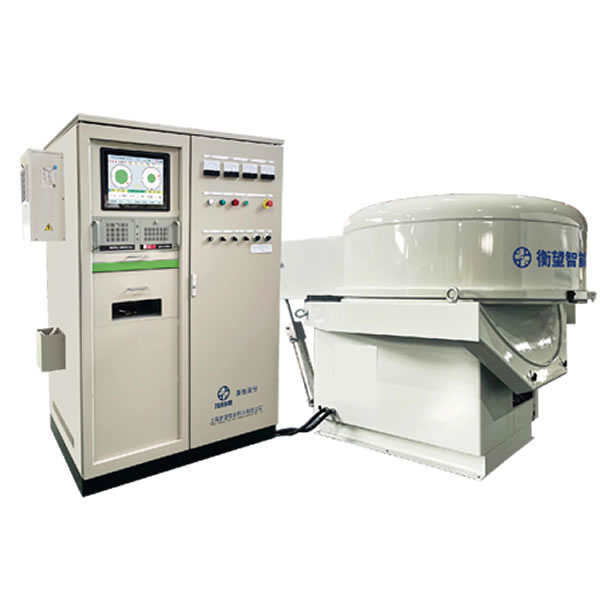

The HYLS-150 Vertical Dual-Plane Hard-Support Balancing Machine offers excellent static, dynamic, and thermal stability, along with high precision, making it suitable for balancing tests on a wide range of workpieces such as turbine disks, high- and low-pressure turbine rotors of aircraft engines, and other disk-shaped rotors. The machine employs advanced technology to ensure outstanding dynamic performance, with a high-precision detection and display system that is reliable, highly accurate, resistant to interference, and provides a fast response time.
Ultimate Precision:
Suitable for various high-speed rotating disk products.
Orthogonal Support Frame:
Four-speed permanent speed adjustment for simple and quick operation.
Visual Operation via Touch Screen:
Rich software functionalities for enhanced user experience.
| Workpiece mass range | 5-150kg |
| Maximum diameter of workpiece (mm) | 1448mm |
| Maximum height of workpiece(mm) | 508mm |
| Motor Power (kW) | 7.5kw |
| Balancing speed | 960rpm |
| Min.achievable residual unbalance Emar | 50uinch |
| Unbalance reduction ratio URR | ≥95% |
HYLS-150 vertical two planes hard bearing balancing machineWe use cookies to enhance your browsing experience, serve personalized ads or content, and analyze our traffic. By clicking "Accept All", you consent to our use of cookies.
