ibalancing’s horizontal and vertical universal balancing machines are used to precisely balance a wide range of roll and disk shaped rotors. Their modular design makes them adaptable for many balancing tasks. Balancing correction with JZABM universal balancing machines is performed either manually or manually controlled..
Introduction:
It is especially suitable for small batch and multi-variety production. It is suitable for applications such as consumer electronics, household appliances and industrial fans that require external rotors. It uses a P-type milling cutter to sweep along the outer cylindrical surface to achieve precise weight removal. The soft support high-precision measurement system has high measurement data accuracy and good repeatability
Features:
1、Simple and flexible operation, with only one hour of training needed to begin work ；
2、Uses P-type milling cutters for sweeping along the outer circular surface, with vertical double-sided material removal ；
3、Fast cycle time, completing detection, correction, and re-testing within 15 seconds, significantly improving efficiency ；
4、Fully automated balancing detection, precise positioning, and intelligent correction, eliminating the need for manual adjustments ；
5、Fully independent intellectual property rights, with highly customizable solutions available for special products.
| Basic parameters | value |
| Outer Diameter | φ50-130 |
| Shaft length | ＜200mm(If this item has ) |
| Work Rhythm | ≤20s |
| Measurement Repeatability | ±5mg |
| One-time Deduplication Rate | ＞90% |

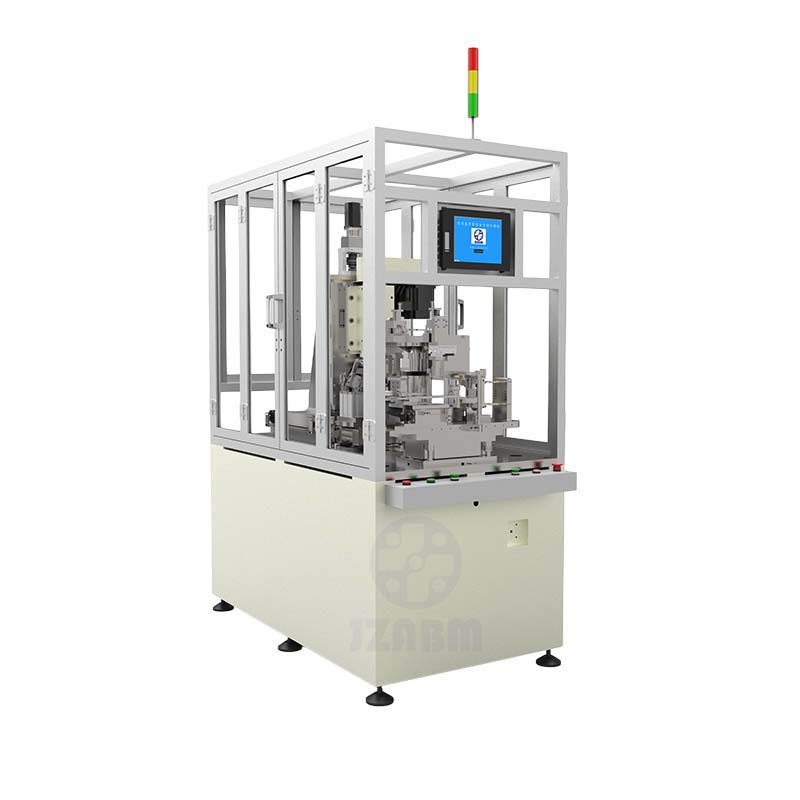

External rotor balancing machine（Two-station）We use cookies to enhance your browsing experience, serve personalized ads or content, and analyze our traffic. By clicking "Accept All", you consent to our use of cookies.
