Brief description

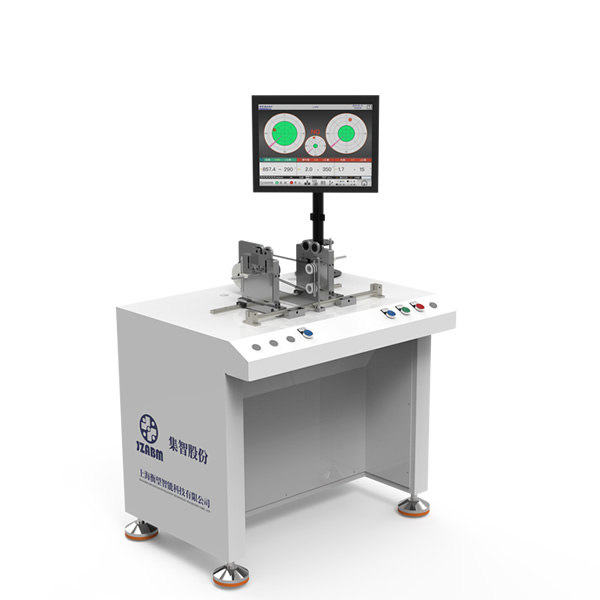

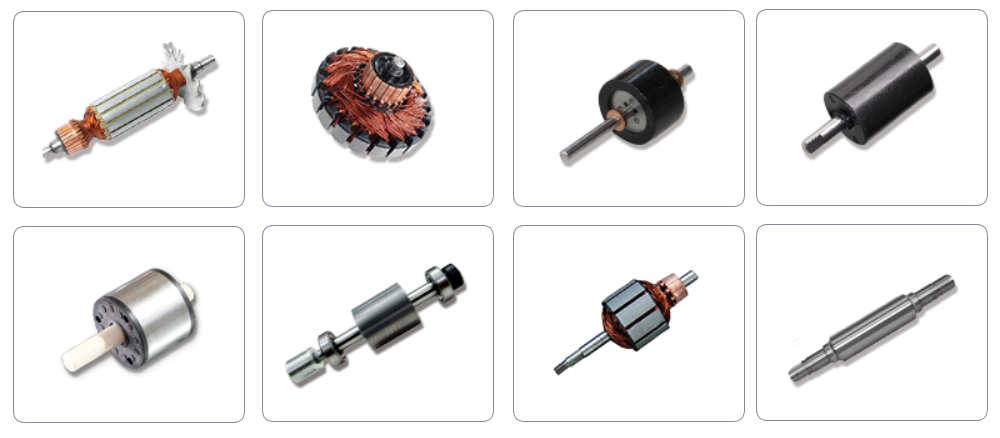

EH1 series hard bearing balancing machine is one of the most advanced general-purpose horizontal balancing machines with independent intellectual property rights, integrating precision machinery and modern electrical technology. Due to its simple operation, stable performance and precise detection accuracy, it is widely used in motors, fans, pumps, printing, papermaking, textile machinery, internal combustion engines, electronics, machine tools, aerospace and other industries. It is suitable for balancing detection of small motor rotors, small blower rotors, small and medium-sized machine tool spindle rotors, etc.

Product features

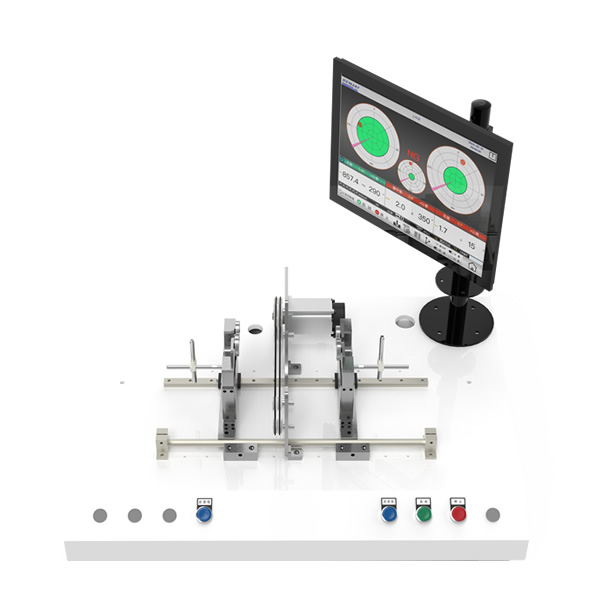

1. The combination of belt and AC motor is adopted to drive the workpiece to rotate through the belt.
2. It has the characteristics of high precision, high efficiency, simple operation, intuitive display, strong human-machine interaction, etc.

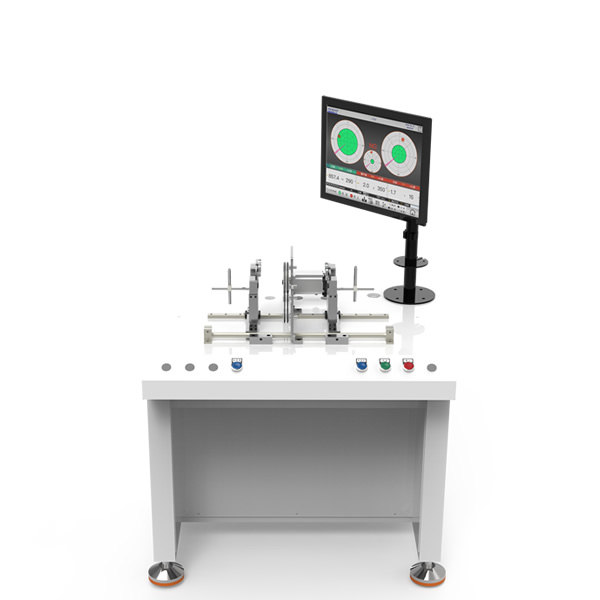

3. The integral H-shaped support frame has a light and reliable structure, low vibration system damping and good rigidity.
4. Each supporting part adopts international and domestic well-known brand products, such as gearbox, rolling bearing, low-voltage electrical components, etc.
5. Before starting, as long as the distance between the two correction surfaces of the rotor, the distance between the correction surface and the support point, and the radius of the correction surface are adjusted, the value and phase of the workpiece imbalance can be correctly displayed at one start.

Application

Technical Specifications

• model：EH1BU
• Drive mode：Belt drive
• Weight of workpiece (max)：16Kg
• Max diameter：Φ300mm
• Journal diameter on roller carriages：Φ6 mm-φ30 mm
• Balancing speed：200-1600rpm
• Length of workpiece (max)：450 mm
• Belt driving diameter：10-150 mm
• Min.achievable residual unbalance：≤0.2g.mm/kg
• Unbalance reduction ratio：≥95%
