ibalancing’s horizontal and vertical universal balancing machines are used to precisely balance a wide range of roll and disk shaped rotors. Their modular design makes them adaptable for many balancing tasks. Balancing correction with JZABM universal balancing machines is performed either manually or manually controlled..
Brief Description
In the automotive industry, crankshaft balancing machines play a vital role. As the core component of the engine, the balance of the crankshaft directly affects the performance of the engine and the driving stability of the vehicle.

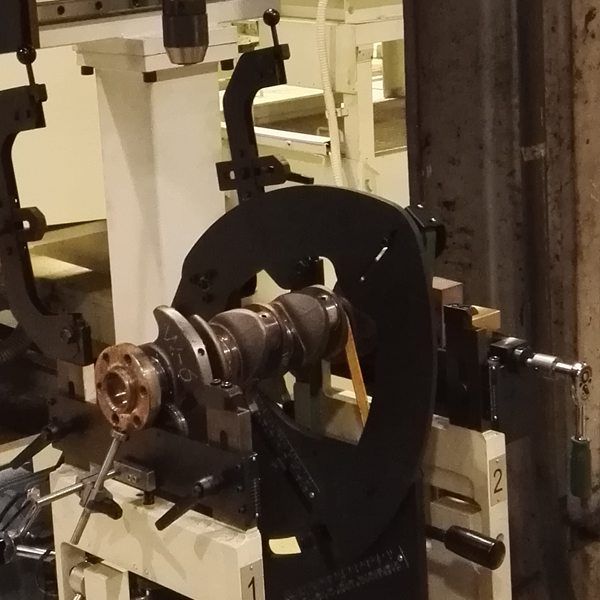

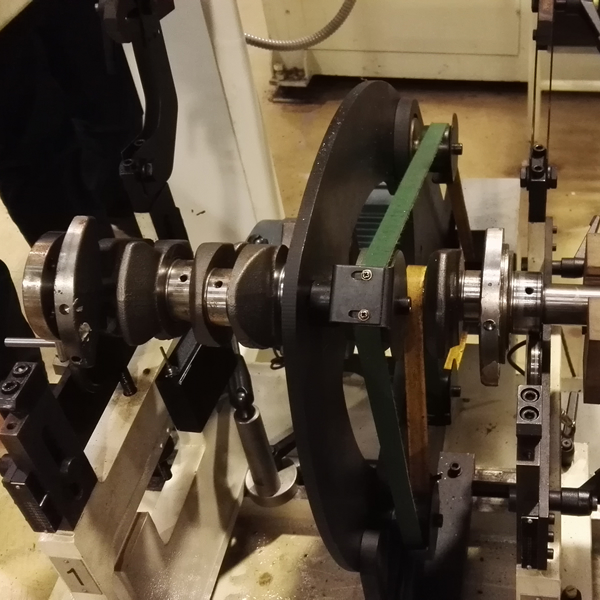

ibalancing crankshaft balancing machine adopts belt drive to ensure the balance quality and accuracy of the workpiece. The belt drive is convenient for loading and unloading and has high work efficiency. It is widely used in balancing and correcting rotating workpieces such as engine crankshafts, motor rotors, power tool machine tool spindles, ventilation equipment, flywheel assembly etc.
Features:
Technical Parameters:
| TYPE | H2BK | H20BK | |
| Max.mass of workpiece | 40kg | 100kg | |
| Max. diameter of workpiece | Φ800mm | ||
| Distance between two supports | 80~630mm | ||
| shaft diameter range | Standard | Φ8~Φ50mm | Φ9~Φ70mm |
| Optional | Φ100mm | Φ140mm | |
| Diameter range of belt drive | Φ20~Φ200mm | ||
| Balance speed | 0~1540r/min | ||
| Motor Power | 0.75kW（AC） | ||
| Minimum achievable residual unbalance(emar) | 0.5gmm/kg | 0.1gmm/kg | |
| Unbalance reduction rate (URR) | 90% |
90%
|
|
The following parameters are standard and can be modified upon request.
| Max diameter | Φ800mm |
|---|---|
| Distance between two supports | 80~630mm |
| Balancing speed | 0~1540r/min |
| Diameter range of belt drive | Φ20~Φ200mm |
| Drive mode | |
| Min.achievable residual unbalance | |
| Unbalance reduction ratio |

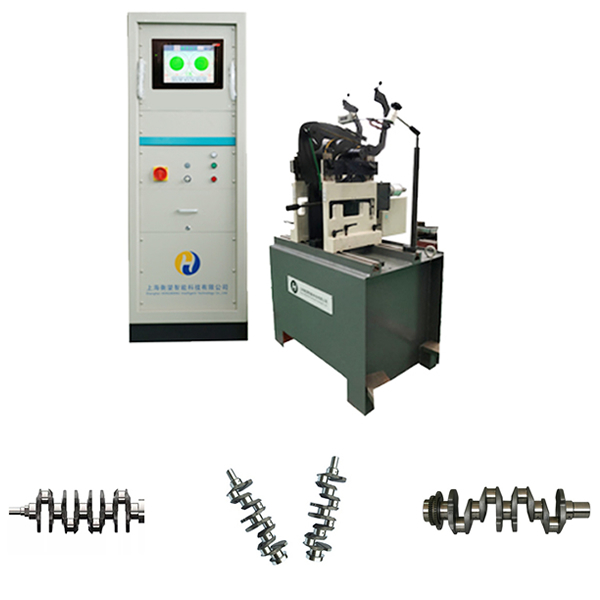

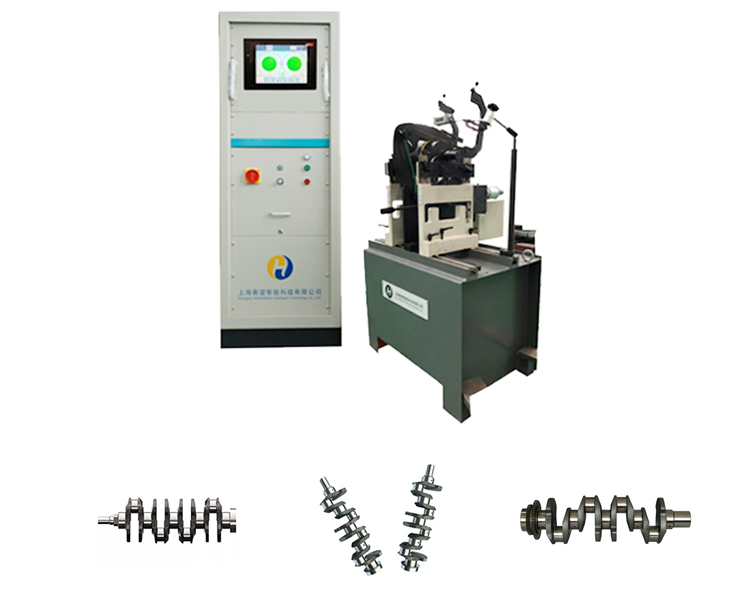

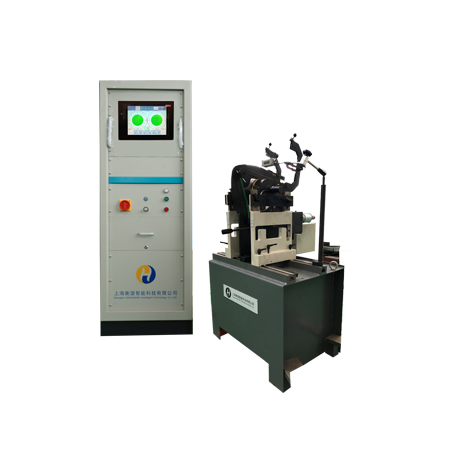

Crankshaft balancing machineH2BK:Max.mass 40Kg；H20BK：Max.mass 100Kg
