• Application Directions:Mainly used in the production of water pump brushless motor stator.

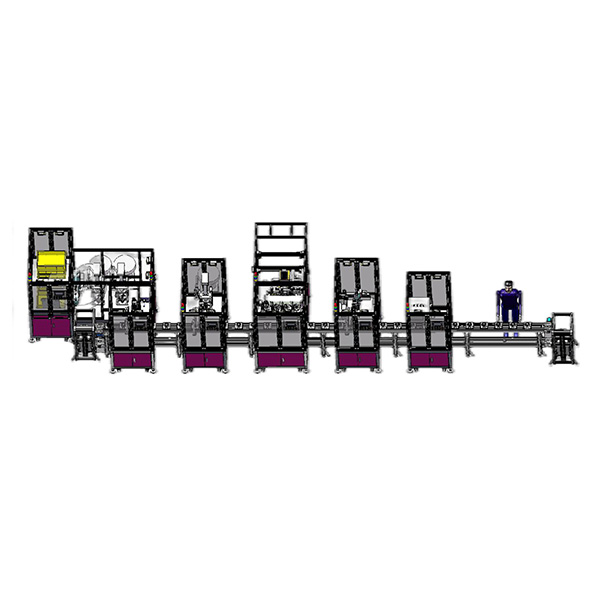

• Production line structure:Includes multiple automated workstation stators, resulting in increased productivity and product quality, as well as reduced labor costs.

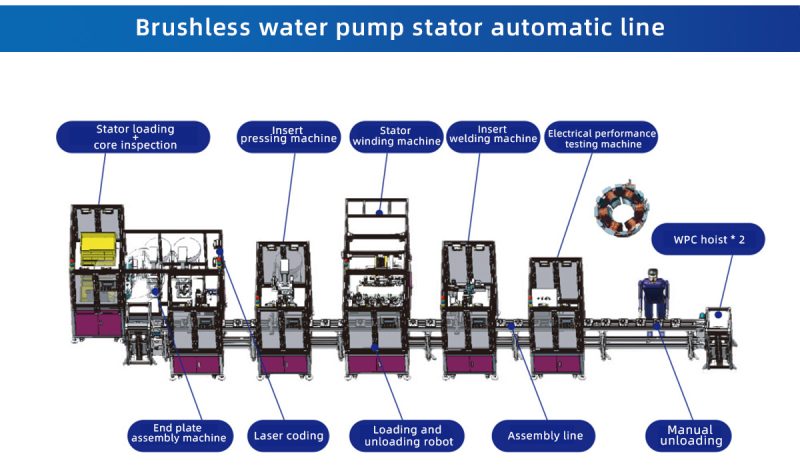

• Production Line Description:

           1.Stator core loading system: deliver the processed stator core to the stator assembly area through conveyor belt or other means;
           2.End plate assembly system: install the end plates on both sides of the stator in sequence on the stator;
           3.Stator pinning: provide the connecting terminals to the assembly area through the vibrating disk loading, and pick up the materials with the robot for pinning. Test the insertion height after insertion;
           4.Stator winding: Winding according to the winding process;
           5.Terminal spot welding: weld the terminals and copper wires by resistance welding;
           6.Detection system: conduct a number of electrical performance tests on the assembled stator to ensure that the stator’s performance indexes meet the required standards;
           7.Packing system: the qualified pump stator is packaged under the material.

• Staffing:Just one person
• Production Line Advantage:The production line adopts modular design, which can be invested in phases according to customers’ needs, improve production efficiency, reduce production cost, ensure product quality, and has the advantages of high efficiency, stability, reliability, and high degree of automation.
