ibalancing’s horizontal and vertical universal balancing machines are used to precisely balance a wide range of roll and disk shaped rotors. Their modular design makes them adaptable for many balancing tasks. Balancing correction with JZABM universal balancing machines is performed either manually or manually controlled..
Application field:

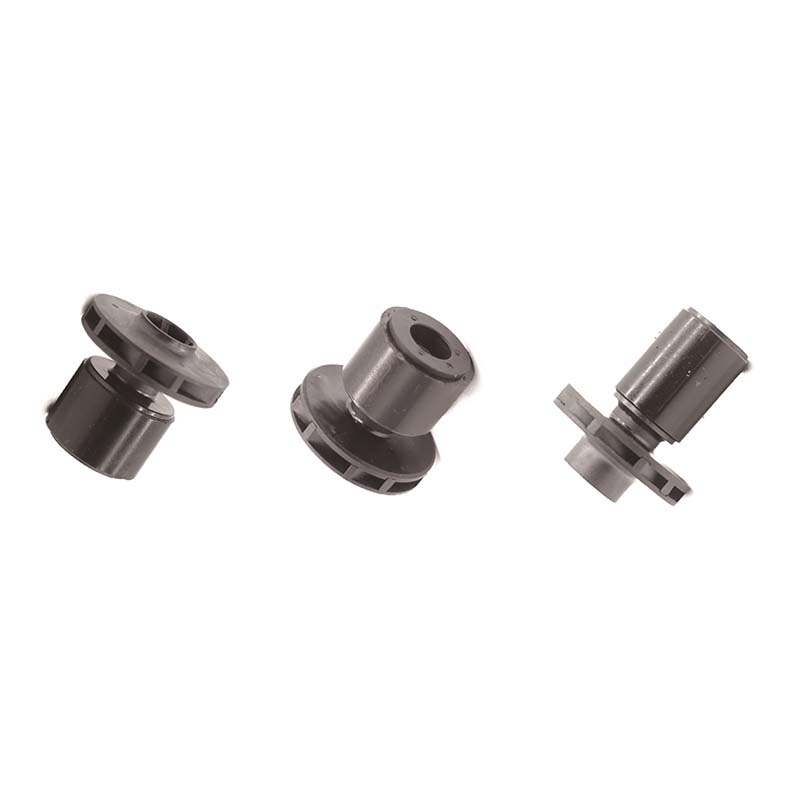

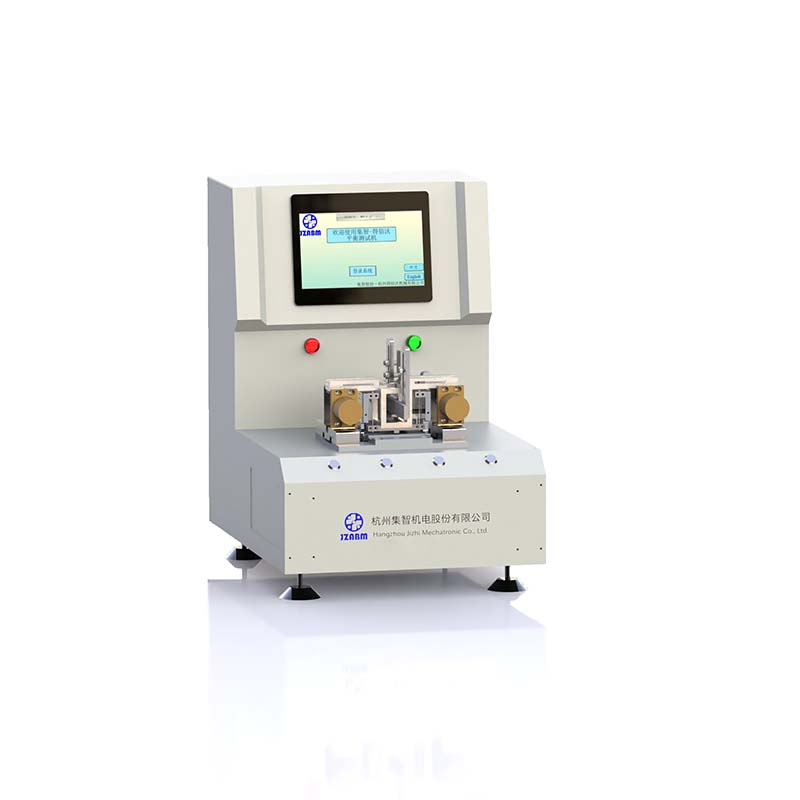

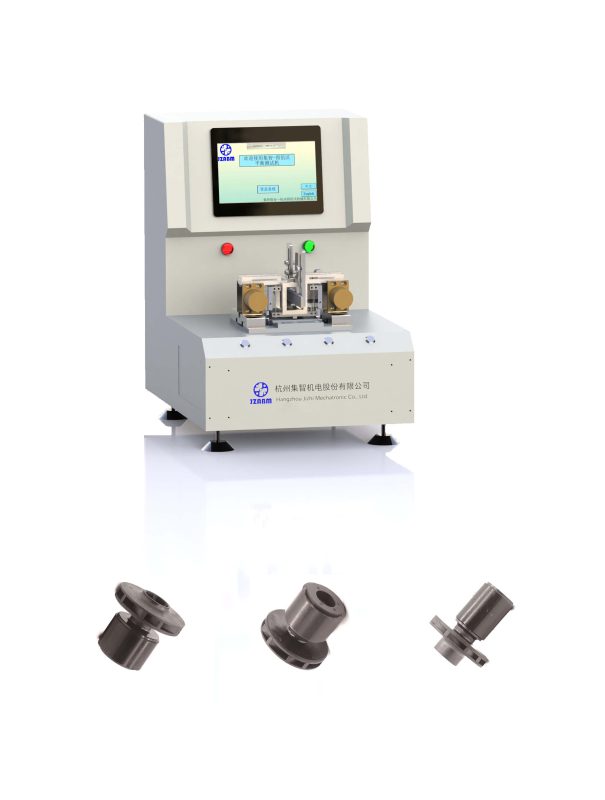

The dual-plane horizontal balancing testing machine W2 is suitable for mass balancing of workpieces such as oil pumps, brushless water pumps, and electronic pumps.
Features:
1、Utilizes a self-developed intelligent algorithm for accurate measurement and allows for designated data display positions.
2、Automatic positioning to avoid manual angle adjustments, improving efficiency.
3、Belt-driven from below, facilitating easy loading and unloading of materials.
4、Equipped with Debaiwo operating software that offers clear prompts and has a self-calibration function.
5、Independently designed cradle with excellent mechanical performance, sturdy and reliable.
6、Operation fault alerts that provide prompts for different operational errors, making debugging easier.
7、USB data export, enabling review of historical data for up to 90 days.
8、Optional weight addition or removal, with automatic positioning based on the correction method.
| Model Name | Dynamic Balancing Testing Machine | |
| Model Type | DBW-TM01NW2 | DBW-TM02NW2 |
| Configuration | · Controller | |
| · Vibration Sensor | ||
| · Speed Sensor | ||
| · Touch Screen | ||
| · Stepper Motor | ||
| Applicable Workpiece Size | 10-30mm | |
| Applicable Workpiece Weight | 50g-300g | |
| Unbalance Detection | Single plane/dual plane | |
| Drive Mode | Belt drive | |
| Rotation Speed | 1800-3600 RPM | |
| Repeat Testing Accuracy (φ41.2, 50 tests on the same workpiece) | The dummy shaft workpiece is affected by the concentricity and roughness of the inner hole. | |
| Test Cycle Time | ≤6sec | |
| Storable Workpiece Varieties | 100 | |
| Dimensions | 660*500*1450 | 650*500*750 |
| Weight | 120 kg | 80 kg |
| Power Supply | Single phase AC220V, 50 Hz | |
| Power Consumption | 0.5kw | |
| Display Units | mg | |
