ibalancing’s horizontal and vertical universal balancing machines are used to precisely balance a wide range of roll and disk shaped rotors. Their modular design makes them adaptable for many balancing tasks. Balancing correction with JZABM universal balancing machines is performed either manually or manually controlled..

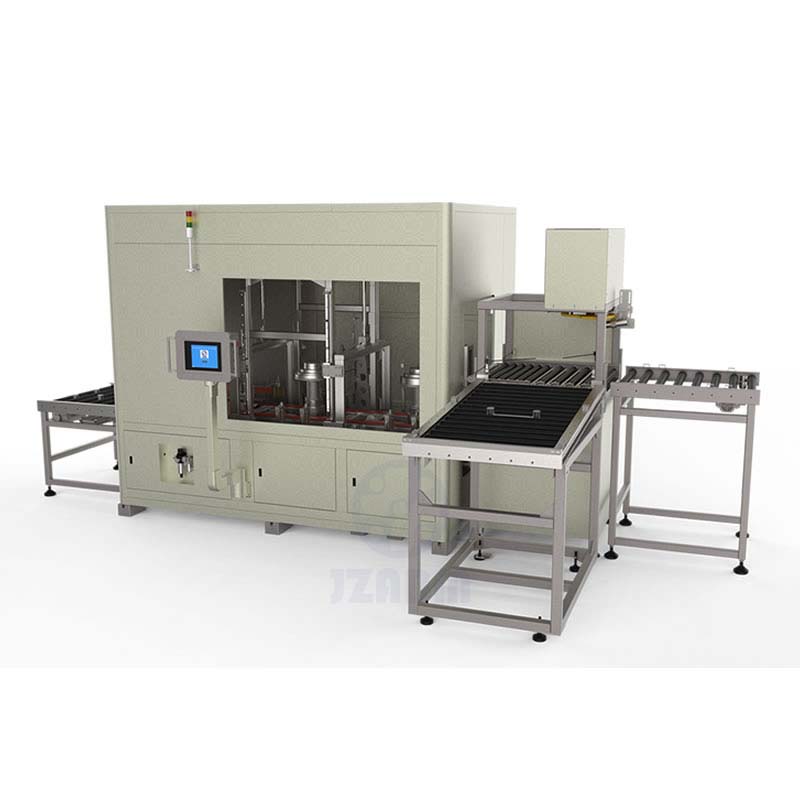

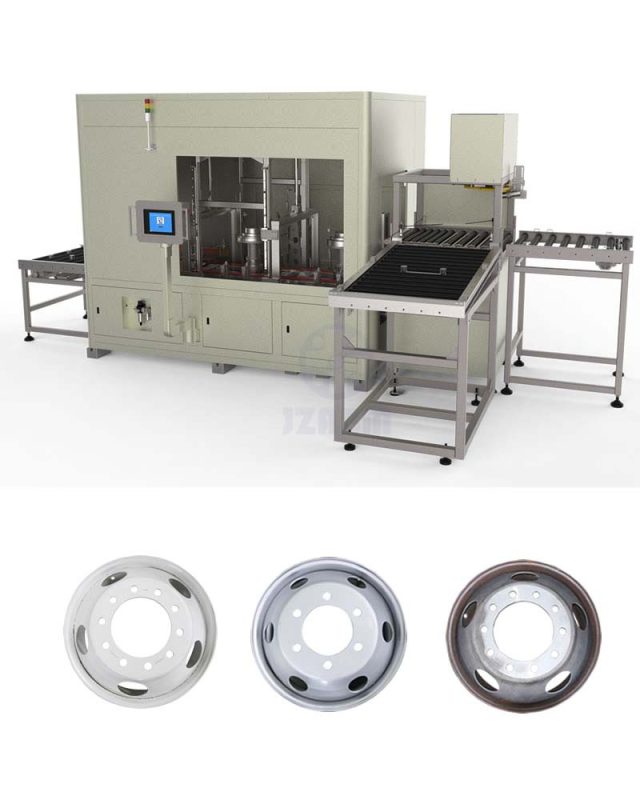

It is suitable for measuring the radial and axial runout of steel wheels, the unbalance amount on both sides, and the static unbalance.
1、Equipped with a vision-based fully automatic model identification system, enabling mixed-line production of different wheel hub models ；
2、Compact and robust structure, characterized by accurate testing and strong stability consistency ；
3、Wide product applicability and fast production cycle ；
4、Capable of automatic data tracking and autonomous data analysis based on customer requirements ；
5、Proprietary intellectual property with the capability for highly customized support for special products.
| Basic parameters | value |
| Wheel Outer Diameter | 16~22.5inches |
| Weight | ≤50kg |
| Center Hole Diameter | Φ138to 281mm(Multiple Fixtures Compatible) |
| Working Cycle Time | 22s |
