ibalancing’s horizontal and vertical universal balancing machines are used to precisely balance a wide range of roll and disk shaped rotors. Their modular design makes them adaptable for many balancing tasks. Balancing correction with JZABM universal balancing machines is performed either manually or manually controlled..

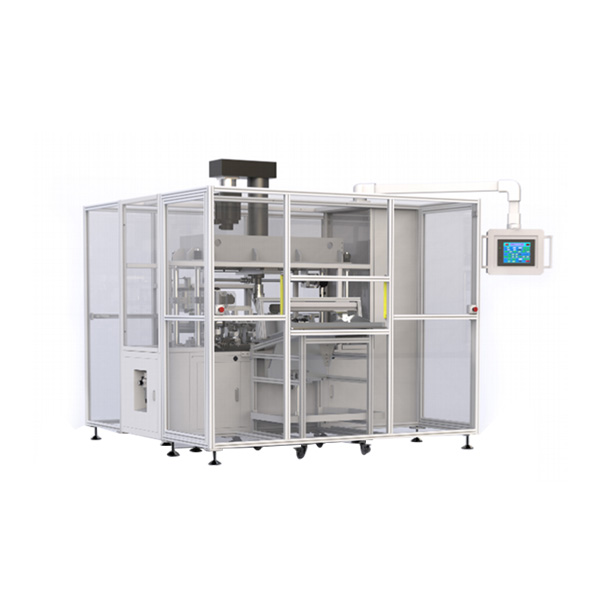

| Equipment parameters | Automatic type-changing straightener | |
| Type： | ZJ-005DAM52J-A | |
| Length range： | 40mm~600mm | |
| Diameter range: | 4mm~25mm | |
| Measuring points： | 1~5 points (can be increased or decreased) | |
| Correction of points： | Multi-point (according to specific requirements) | |
| Accuracy： | 0.001mm | |
| Capability： | 0.01mm | |
| Measure speed： | 30~120rpm | |
| Cycle Time: | 5~6s; matched structure | |
| Drive mode： | Belt wheel drive | |
| Control Method: | PLC (Keyence KV-3000)/PLC (Keyence KV-NANO) | |
| Maximum Output Force: |
5 ton (1 ton, 2 tons, 3 tons, 5 tons, 10 tons can be selected a) | |
| Loading Mode: | Manual, Manipulator, chain assembly line, Sawtooth Assembly Line, bin assembly line (optional) | |
| Machine Weight : | 1100kg | |
| Working Air Pressure: | Compressed air: 0.5 mpa, Rh: ≤60% , flow≥150L/min | |
| Power : | 3P 380V + 10% 50 ± 1Hz three-phase five-wire system | |
| Consumption: | 9kw | |
| Volume(W* D * H): | 2400*2400*2400 | |
