ibalancing’s horizontal and vertical universal balancing machines are used to precisely balance a wide range of roll and disk shaped rotors. Their modular design makes them adaptable for many balancing tasks. Balancing correction with JZABM universal balancing machines is performed either manually or manually controlled..
| Equipment parameters | Automatic straightening machine for rotor | Automatic straightening machine for rotor |
| Type： | ZJ-001DAM11J-A | ZJ-001GAM11J-A |
| Length range： | 50mm~200mm | 50mm~200mm(Length can be customized ) |
| Diameter range: | 4mm~10mm | 2mm~10mm |
| Measuring points： | 1 point (can be increased or decreased) | 1 point (can be increased or decreased) |
| Correction of points： | 1(choose according to specific requirements) | 1(choose according to specific requirements) |
| Accuracy： | 0.001mm | |
| Capability： | 0.01mm | |
| Measure speed： | 30~120rpm | |
| Cycle Time: | 5~6s; matched st | |
| Drive mode： | Belt wheel drive | |
| Control Method: | PLC (Keyence KV-3000)/PLC (Keyence KV-NANO) | |
| Maximum Output Force: |
1 ton (1 ton, 2 tons, 3 tons, 5 tons, 10 tons can be selected ) | |
| Loading Mode: | Manual, Manipulator, chain assembly line, Sawtooth Assembly Line, bin assembly line (optional) | |
| Machine Weight : | 1000kg | |
| Working Air Pressure: | Compressed Air: 0.5 mpa, Rh: s60% , flow>150/min; | |
| Power : | 3P 380V+10% 50±1Hz three-phase five-wire system | |
| Consumption: | 3KW | |
| Volume(W* D * H): | 2100×1000*1900 | |

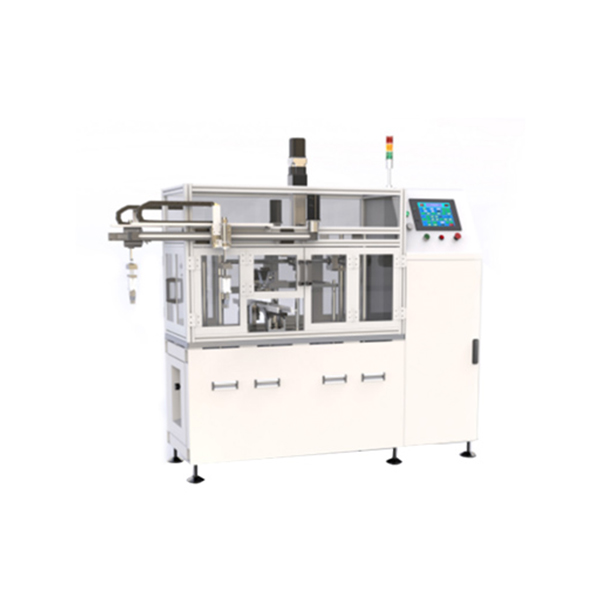

Automatic straightening machine for rotorWe use cookies to enhance your browsing experience, serve personalized ads or content, and analyze our traffic. By clicking "Accept All", you consent to our use of cookies.
