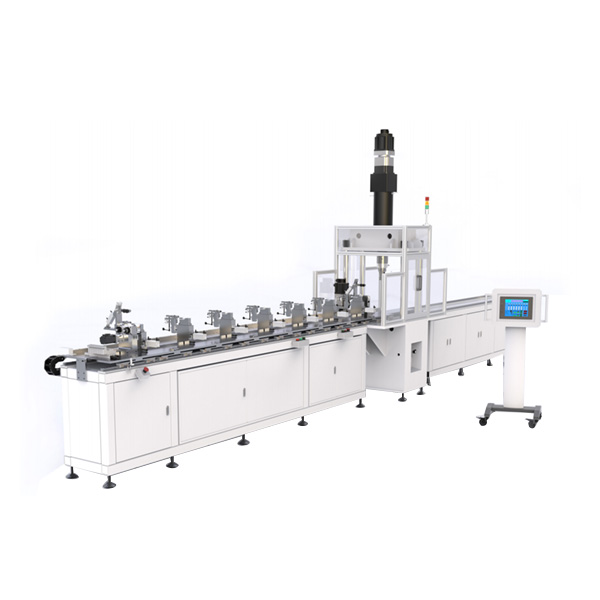

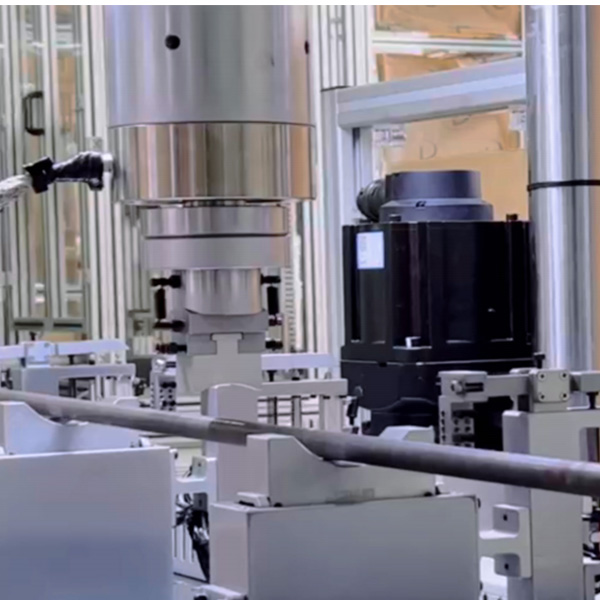

Automatic large shaft straightening machine

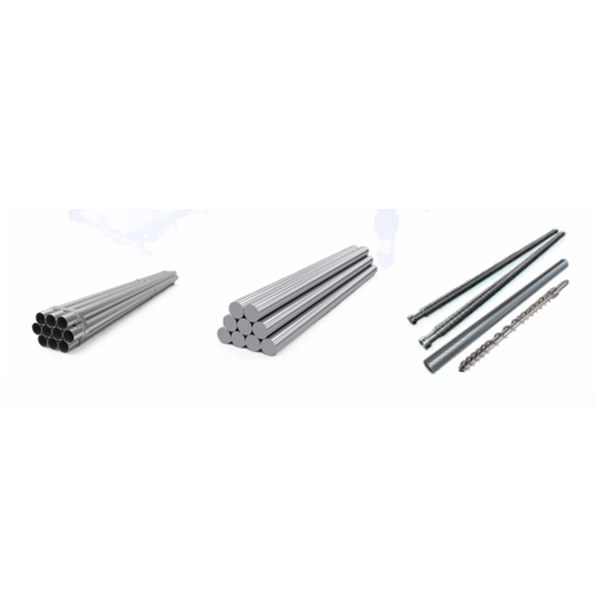

It is suitable for radial runout measurement and straightening of steel pipe, screw, long shaft and other products.

CLICK INQUIRY

YuJu independently develop automatic detection and intelligent alignment algorithms for long-axis products to achieve rapid alignment.
In one correction, the real-time deformation of the current product is keenly captured, achieving a correction rate of more than 90% for most products.
The equipment adopts full PLC control, and the industrial computer control route has been criticized in the industry to ensure the stability of the equipment control system.
Use high-precision sensors and high-precision algorithms to achieve a measurement accuracy of 0.001mm, thereby ensuring measurement accuracy.
With history tracing function, attached 16G memory card to store processing information, and reserved communication interface with the host computer.
It has a variety of functions and can be customized according to customer requirements, with a short customization cycle.
The system can save multiple product models and realize one-click model change, and tooling model change only takes 15~25 minutes.
Can be equipped with automatic loading and unloading, no manual supervision is required.

Equipment parameters	Large automatic shaft straightening machine	Large automatic shaft straightening machine
Type：	ZJ-015DCD72W-A	—
Length range：	500mm~3000mm	Greater than3000mm (length can be customized)
Diameter range:	15mm~30mm	—
Measuring points：	1~7 points (can be increased or decreased)	≥5 points (can be increased or decreased)
Correction of points：	1~7(according to specific requirements)	Multi-point (according to specific requirements)
Accuracy：	0.001mm
Capability：	0.01mm
Measure speed：	30~120rpm
Cycle Time:	7 ~ 8s; matched structure
Drive mode：	Belt wheel drive
Control Method:	PLC (Keyence KV-3000)/PLC (Keyence KV-NANO)
Maximum Output Force:	15 ton (5 ton, 10 tons, 15 tons, 20 tons, 30 tons, can be selected )
Loading Mode:	Manual, Manipulator, chain assembly line, Sawtooth Assembly Line, bin assembly line (optional)
Machine Weight :	3200kg	—
Working Air Pressure:	Compressed air: 0.5 mpa, Rh: ≤60% , flow: ≥150L/min
Power :	3P 380V + 10% 50 ± 1Hz three-phase five-wire system
Consumption:	12kw	—
Volume(W* D * H):	79009003000	—
